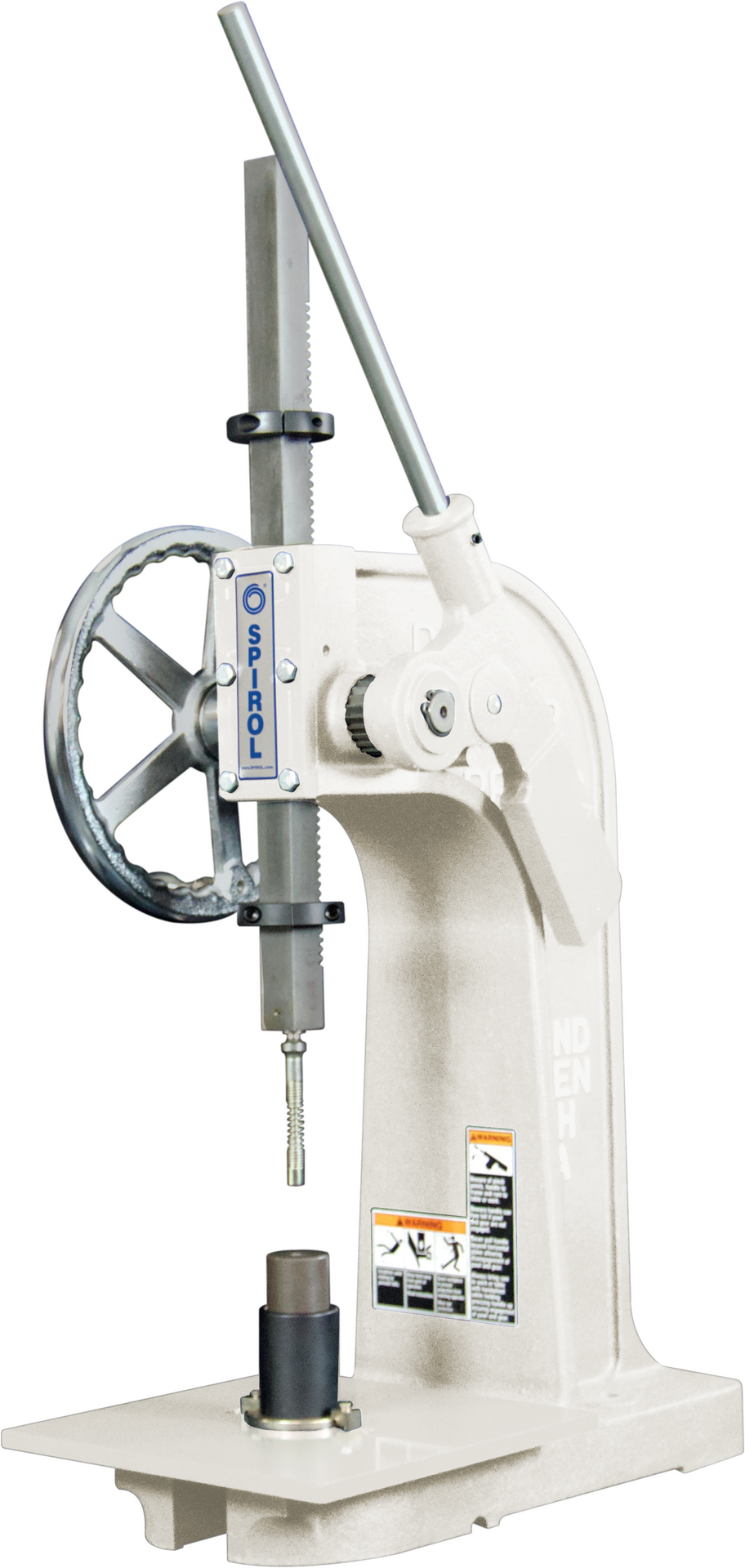

PolskaModel PMX Extra Heavy Duty Manual Pin Inserter
Built for low- to moderate-volume production environments requiring insertion forces up to 22.4 kN (5,000 lbs.), the Model PMX Extra Heavy Duty Manual Pin Inserter is ideal for installing Coiled Spring Pins, Slotted Spring Pins, Solid Pins, and a variety of other pin types*. Engineered for flexibility and efficient setup changes, fixtures can be quickly exchanged at the machine base, while different pin diameters are accommodated by simply changing the Pin Driving Chuck. The robust design delivers consistent performance, smooth operation, repeatable results, and long service life.
Optional alignment fixtures available.
*Can be adapted to install Alignment Dowels / Bushings
Design Features & Benefits:
Easy:
- Ergonomic high mechanical advantage ratchet action
- Simple and quick tool changeover
Accurate:
- Positive mechanical stroke stop for precise, repeatable installation depth
Versatile:
- Throat height accommodates a large array of parts
- Rapid ram advance and retract accommodates many different size and shape parts
- Precision ground oversize baseplate provides a large area for mounting part tooling
- Accepts both CXA and CXD Pin Driving Chucks
- Can be adapted to install Alignment Dowels / Bushings
Reliable:
- Heavy duty cast iron frame
- Hardened steel rack, pinion, and pawl
Capacities:
- 22.4 kN (5,000 lbs) maximum insertion force
- Stroke: 380mm (15”) in 50mm (2”) increments
- Adjustable throat height: 300mm (12”)
- Fixed throat depth: 125mm (5”)
